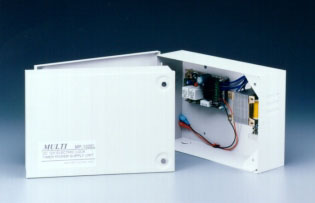

Electronic Lock Control
[Connection Example]
  • Designed for electronic lock and holding magnets.
  • Adjustable lock release timer.
  • Tamper switch protection - DC 12V output cut off and alarm sound when tamper switch was triggered.
  • With battery charging terminal.
  • Power supply included.
Power Source AC 220-240V 50/60Hz
Lock Output Fused DC12V, 2A
Timer 1-25 sec.
Auxiliary Power Terminal DC 12V & 6V, 1A
Battery Charger DC 12V
Dimensions 265(W) x 195(H) x 80(D) mm
Weight 206kg (battery not included)
