Home Theatre Integrated Amplifier

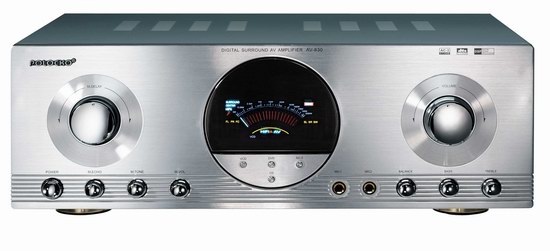

AV-830A
Home Theatre Integrated Amplifiers

Features:

Output Power (P.M.P.O.) stereo

80Wx2, 8 ohms,

Output Power (P.M.P.O.) 5.1 front

50Wx2, 8 ohms,


surround

20Wx2, 8 ohms,


center

20W, 8 ohms,

Surround Output Mode (selector)

2.1,5.1 channel

Frequency Response

60Hz~20KHz,(+0/-3db)

Signal-to-Noise Ratio

>70db

Input Sensitivity/Impedance

250mV/47K ohms

(AUX,CD,DVD,TUNER,TAPE,AC-3)

MANUAL

Microphone Sensitivity/Impedance

2.5mV/47K ohms

Microphone Echo / Delay

YES

Tone Control

(BASS)

8db at 100Hz, +/-


(Treble)

8db at 10KHz, +/-

Loudness (+6db at 100Hz, +4db at 10KHz)

NO

Digital Surround Processor (DSP)

NO
Infra-red Remote Control

NO

Dimensions (WxHxD)

430x155x340

Weight

5 kg

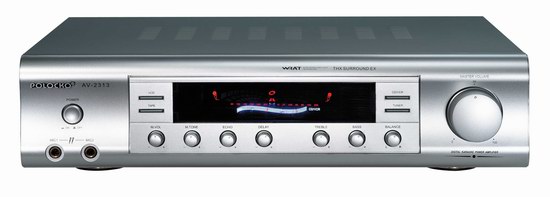

AV-830B
Home Theatre Integrated Amplifiers

Features:

Output Power (P.M.P.O.) stereo

80Wx2, 8 ohms,

Output Power (P.M.P.O.) 5.1 front

50Wx2, 8 ohms,


surround

20Wx2, 8 ohms,


center

20W, 8 ohms,

Surround Output Mode (selector)

2.1 channel

Frequency Response

60Hz~20KHz,(+0/-3db)

Signal-to-Noise Ratio

>70db

Input Sensitivity/Impedance

250mV/47K ohms

(AUX,CD,DVD,TUNER,TAPE,AC-3)

MANUAL

Microphone Sensitivity/Impedance

2.5mV/600 ohms

Microphone Echo / Delay

YES

Tone Control

(BASS)

8db at 100Hz, +/-


(Treble)

8db at 10KHz, +/-

Loudness (+6db at 100Hz, +4db at 10KHz)

NO

Digital Surround Processor (DSP)

NO
Infra-red Remote Control

NO

Dimensions (WxHxD)

430x110x335

Weight

3.8 kg

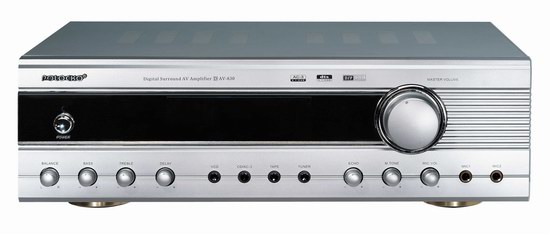

AV-830D
Home Theatre Integrated Amplifiers

Features:

Output Power (P.M.P.O.) stereo

80Wx2, 8 ohms,

Output Power (P.M.P.O.) 5.1 front

50Wx2, 8 ohms,


surround

20Wx2, 8 ohms,


center

20W, 8 ohms,

Surround Output Mode (selector)

2.1,5.1 channel

Frequency Response

60Hz~20KHz,(+0/-3db)

Signal-to-Noise Ratio

>70db

Input Sensitivity/Impedance

250mV/47K ohms

(AUX,CD,DVD,TUNER,TAPE,AC-3)

MANUAL

Microphone Sensitivity/Impedance

2.5mV/600 ohms

Microphone Echo / Delay

YES

Tone Control

(BASS)

8db at 100Hz, +/-


(Treble)

8db at 10KHz, +/-

Loudness (+6db at 100Hz, +4db at 10KHz)

NO

Digital Surround Processor (DSP)

NO
Infra-red Remote Control

NO

Dimensions (WxHxD)

430x140x330

Weight

5.3kg

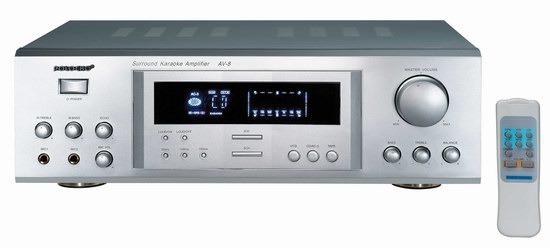

AV-831
Home Theatre Integrated Amplifiers

Features:

Output Power (P.M.P.O.) stereo

80Wx2, 8 ohms,

Output Power (P.M.P.O.) 5.1 front

50Wx2, 8 ohms,


surround

20Wx2, 8 ohms,


center

20W, 8 ohms,

Surround Output Mode (selector)

2.1,5.1 channel

Frequency Response

60Hz~20KHz,(+0/-3db)

Signal-to-Noise Ratio

>70db

Input Sensitivity/Impedance

250mV/47K ohms

(AUX,CD,DVD,TUNER,TAPE,AC-3)

MANUAL

Microphone Sensitivity/Impedance

2.5mV/600 ohms

Microphone Echo / Delay

YES

Tone Control

(BASS)

8db at 100Hz, +/-


(Treble)

8db at 10KHz, +/-

Loudness (+6db at 100Hz, +4db at 10KHz)

YES

Digital Surround Processor (DSP)

NO
Infra-red Remote Control

YES

Dimensions (WxHxD)

430x145x358

Weight

6 kg

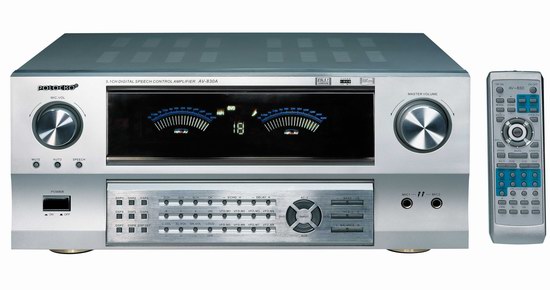

AV-831A
Home Theatre Integrated Amplifiers

Features:
  • Auto scanning input signal , human-machine voice
  • Luxurious animation back light display.
  • Mini CPU processor control , easy operation.
  • 8 mode of surround sound effect.
  • Electric save power ,auto power off when signal is stopped
  • Combination with the latest 5.1 surround ,system on and each channel adjust.
  • Full infra-red remote control , easy operation.

Output Power (P.M.P.O.) stereo

180Wx2, 4 ohms,

Output Power (P.M.P.O.) 5.1 front

140Wx2, 4 ohms,


surround

40Wx2, 4 ohms,


center

40W, 4 ohms,

Surround Output Mode (selector)

2.1, 31, .5.1 channel

Frequency Response

60Hz~20KHz,(+0/-2db)

Signal-to-Noise Ratio

>70db

Input Sensitivity/Impedance

250mV/47K ohms

(AUX,CD,DVD,TUNER,TAPE,AC-3)

AUTO / MANUAL

Microphone Sensitivity/Impedance

2.5mV/600 ohms

Microphone Echo / Delay

YES

Tone Control

(BASS)

8db at 100Hz, +/-


(Treble)

8db at 10KHz, +/-

Loudness (+6db at 100Hz, +4db at 10KHz)

YES

Digital Surround Processor (DSP)

YES
Infra-red Remote Control

YES

Dimensions (WxHxD)

430x190x378

Weight

8.6 kg

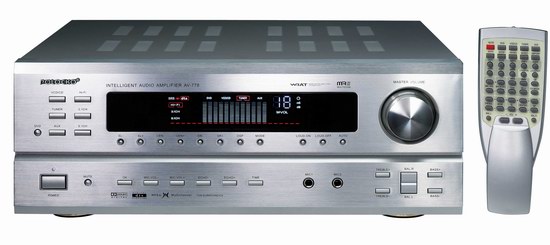

AV-831B
Home Theatre Integrated Amplifiers

Features:

Output Power (P.M.P.O.) stereo

180Wx2, 4 ohms,

Output Power (P.M.P.O.) 5.1 front

140Wx2, 4 ohms,


surround

40Wx2, 4 ohms,


center

40W, 4 ohms,

Surround Output Mode (selector)

2.1, 31, .5.1 channel

Frequency Response

60Hz~20KHz,(+0/-2db)

Signal-to-Noise Ratio

>70db

Input Sensitivity/Impedance

250mV/47K ohms

(AUX,CD,DVD,TUNER,TAPE,AC-3)

AUTO / MANUAL

Microphone Sensitivity/Impedance

2.5mV/600 ohms

Microphone Echo / Delay

YES

Tone Control

(BASS)

8db at 100Hz, +/-


(Treble)

8db at 10KHz, +/-

Loudness (+6db at 100Hz, +4db at 10KHz)

YES

Digital Surround Processor (DSP)

YES
Infra-red Remote Control

YES

Dimensions (WxHxD)

430x170x400

Weight

8.3 kg

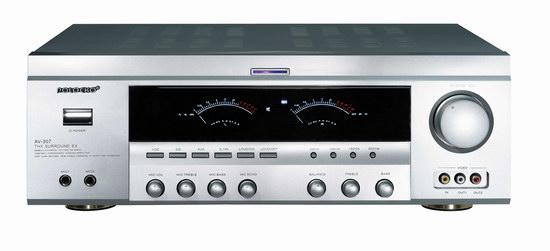

AV-831C
Home Theatre Integrated Amplifiers

Features:

Output Power (P.M.P.O.) stereo

80Wx2, 8 ohms,

Output Power (P.M.P.O.) 5.1 front

50Wx2, 8 ohms,


surround

20Wx2, 8 ohms,


center

20W, 8 ohms,

Surround Output Mode (selector)

2.1,5.1 channel

Frequency Response

60Hz~20KHz,(+0/-3db)

Signal-to-Noise Ratio

>70db

Input Sensitivity/Impedance

250mV/47K ohms

(AUX,CD,DVD,TUNER,TAPE,AC-3)

MANUAL

Microphone Sensitivity/Impedance

2.5mV/600 ohms

Microphone Echo / Delay

YES

Tone Control

(BASS)

8db at 100Hz, +/-


(Treble)

8db at 10KHz, +/-

Loudness (+6db at 100Hz, +4db at 10KHz)

YES

Digital Surround Processor (DSP)

NO
Infra-red Remote Control

YES

Dimensions (WxHxD)

430x155x365

Weight

6.3kg
