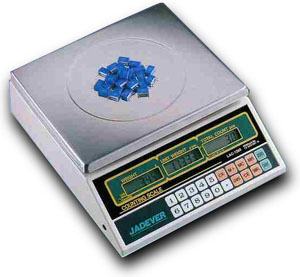

Counting Scale

Counting ScaleCE
Features:
High Resolution -
1/6000 display weight resolution and 1/30,000 internal counting resolution accomodate your diversified applications.

Counting Check -
Internal alarm will sound beeps when user-preset count is reached.

Accumulation (For AC only) -
Count, weight and times of accumulation can be added and recalled for review.

Unit Weight Recomputing -
Unit weight will be re-calculateed each time when more material are put on the pan. This will help to get more accurate total count if there is some variation in the unit weight.

Direct Unit Weight Setting -
A known unit weight also can be set directly by numeric keys for total count calculation.

Insufficient Samples Indication -
Insufficient samples indication informs you to add more parts if more samples have to be added for more accurate unit weight calculation.

Insufficient Unit Weight Indication -
Insufficient unit weight indication informs you to use another scale with resolution for getting more accurate count if the calculated unit weight is less than the display weight resolution of currently used scale.


Specifications:
Model GC-600 GC-1200 GC-3000 GC-6000 GC-12K
Capacity 600g 1200g 3000g 6000g 12kg
Display Resolution 0.1g 0.2g 0.5g 1.0g 2.0g
Display
Vacuum Fluorescent Display, 9.5mm(H) x 4mm(W)
Weight - 5 digits, Unit Weight - 5 digits, Total Count - 5 digits
Pan Size 150mm 230 x 180 mm
Power 110, 120, 220, 240VAC +/-10%, 50/60Hz
Maximum Humidity 85% Relative Humidity, non-condensing
Operating
Temperature
0°C to 40 °C (32°F to 104°F)
